VLT Speedometer Testers


VLT has a range of Speedometer Testers from 1500 kg, 6000 kg up to 14000 kg, developed for intensive and heavy use in Automobile Test Stations.


Brochure Downloads

VLT Speedometer Testers

Sku: VLT-016

VLT has a range of Speedometer Testers from 1500 kg, 6000 kg up to 14000 kg, developed for intensive and heavy use in Automobile Test Stations. All models consist of 4 special coated rollers of which 2 rollers are connected by a propeller-shaft on which the electronic pulse counter is fitted. The signals are sent to the Speedometer controller.

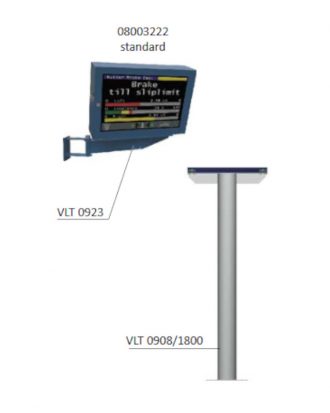

The results are displayed on a 22″TFT-LCD monitor.

Speedometer Testers are available in TEST LANE or STAND-ALONE version.

The software is standard or tailor made.

The VLT 1885 and VLT 3885 are available with a taximeter conversion. This means that in a taximeter configuration an electrical motor is driving the rollers, ensuring that the reading is very accurate (less sound and no emissions).
All models are very robust and can be classified as top of the market, with high value for its price, fitted with a fast hydraulic lifting system which locks the rollers when the lift is up. The 14000 kg version has an independent roller braking system. A hydraulic lifting system is more expensive as the common pneumatic system, but more powerful and more reliable, especially with heavy use of the Speedometer. The Test Lane version has a drive-in place sensor device for full automatic use and safety protection.

Technical Specifications

VLT SPEEDOMETER TESTERS
Stand-alone version
Test Lane version
VLT 1885/M
VLT 1885/M/TL
VLT 3885/M
VLT 3885/M/TL
VLT 6885/M
VLT 66885/M/TL
VLT 14885/M
VLT 14885/M/TL
Maximum testing speed standard 90 km/h 160 km/h 140 km/h 120 km/h
Maximum testing speed 120 km/h 200 km/h 175 km/h 150 km/h
Maximum drive-over weight (axle) 2000 kg 5000 kg 8000 kg 18000 kg
Maximum testing weight (axle) 1000 kg 3500 kg 6000 kg 14000 kg
Roller dimensions 250 x 650 mm 238 x 860 mm 315 x 950 mm 400 x 1100 mm
Centre-to-centre rollers 325 mm 375 mm 500 mm 630 mm
Minimum / maximum testing width 600 x 1900 mm 880 x 2600 mm 850 x 2750 mm 800 x 3000 mm
All rollers raised by 40 mm 40 mm 40 mm 40 mm
Roller set dimensions (w x l x d) 725 x 3070 x 450 mm 930 x 3250 x 450 mm 1190 x 3484 x 640 mm
Hydraulic pump unit 400 V, 3 ph, 50 Hz 1.5 kW 3.0 kW 3.0 kW 3.0 kW
Approx. net weight 1240 kg 1825 kg 2985 kg
Monitor version VLT 1885/M/22″

VLT 3885/M/22″ TFT/CON

VLT 8885/M/22″ TFT/CON VLT 14885/M/22″ TFT/CON
Test lane version

TFT-LCD monitor 32″

Taximeter extension

available only on VLT 1885/M – VLT 1885/M/TL – VLT 3885/M and VLT 3885/M/TL

Taximeter option VLT 1885 and VLT 3885 only VLT 1885/40 VLT 3885/60
Electric motor 400 V, 3 ph, 50 Hz 3.0 kW 7.5 kW
Testing speed approx. 40 km/h 60 km/h
start-up taximeter by soft-start controller
Special version: motor drive for Speed Warning Device
tachometer on drive axle
tachometer testing without vehicle engine
